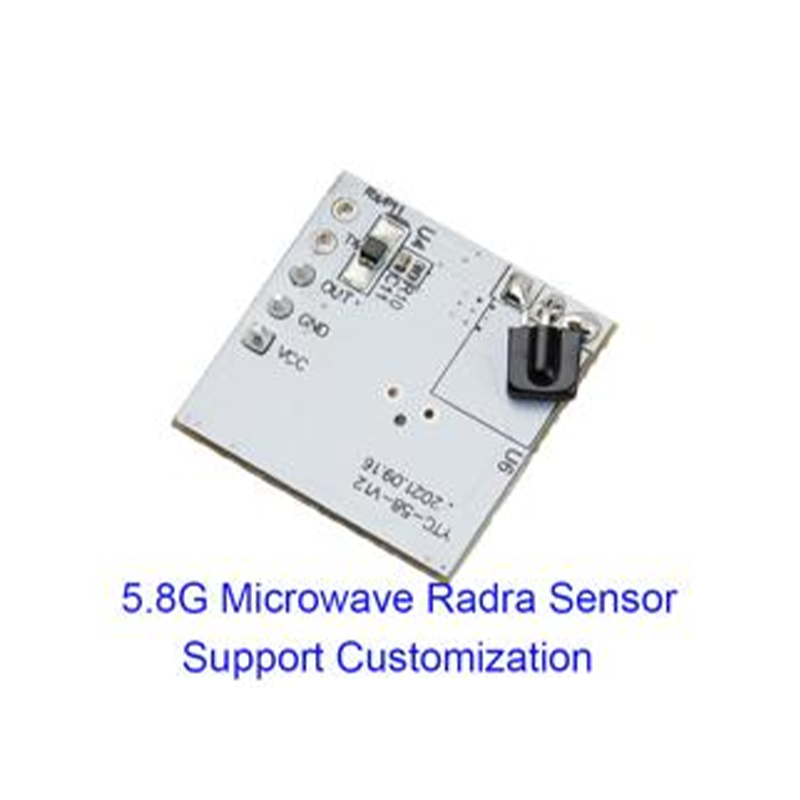

DC microwave motion sensor

Model

YW202

Operating voltage

DC 5V /12V/ 24V

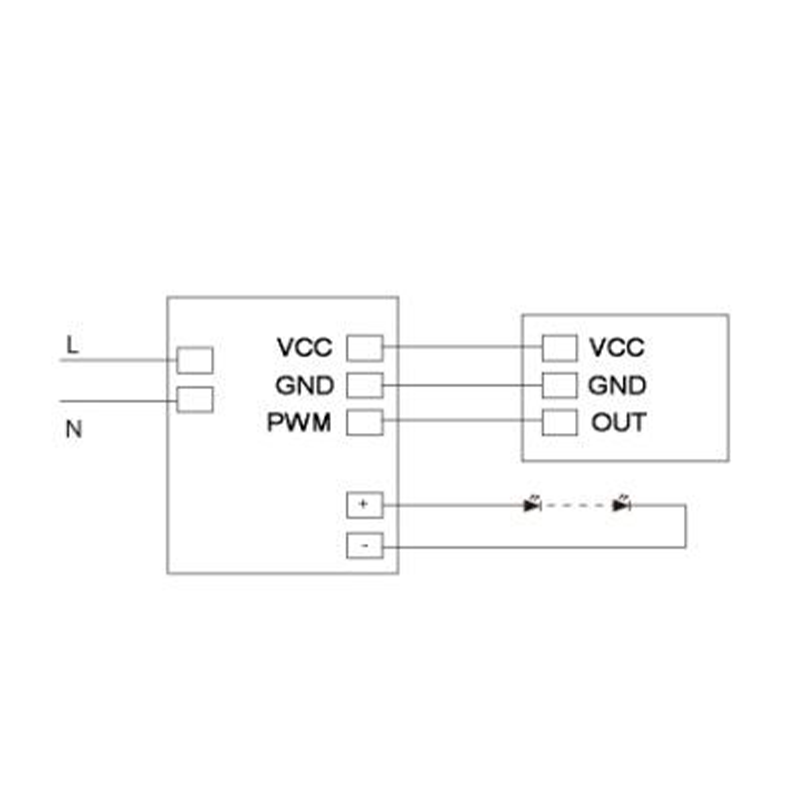

Output

5V TTL / PWM / 0-10V

Operating Current

≤25mA

HF system

5.8GHz±75MHz

Power consumption

≤0.5W

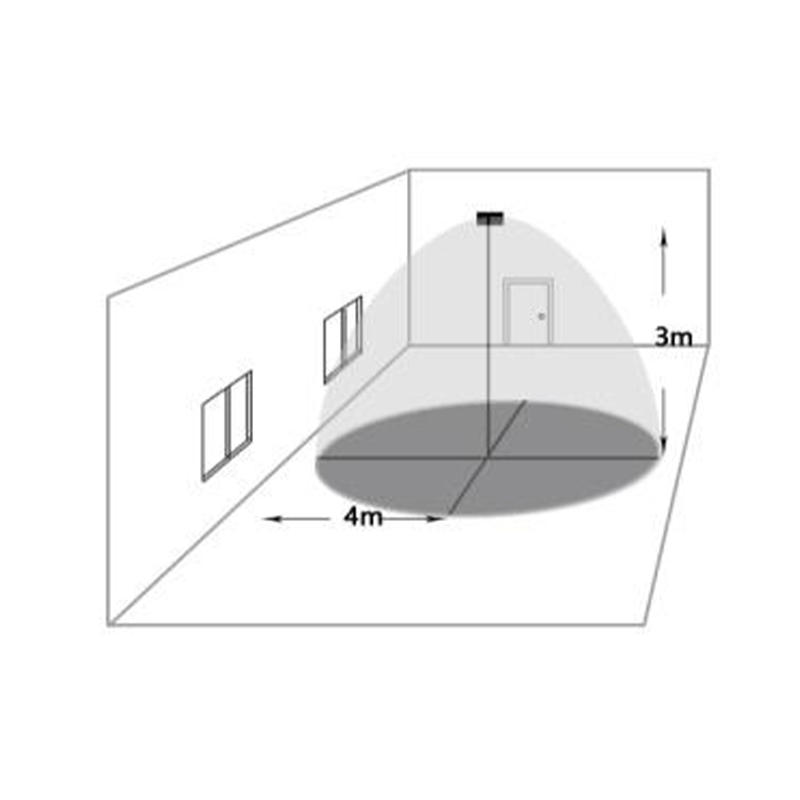

Detection zone Max.(D x H)

3m x 8m  (as request)

Motion detection

0.5~3m/s

Hold time

30s / 90s / 3min / 10min / 30min (as request)

Detection angle

150 °(wall installation) 360 °(ceiling installation)

IP rating

IP20

Operation temperature

-20℃~60℃

Life time

50,000 hours
