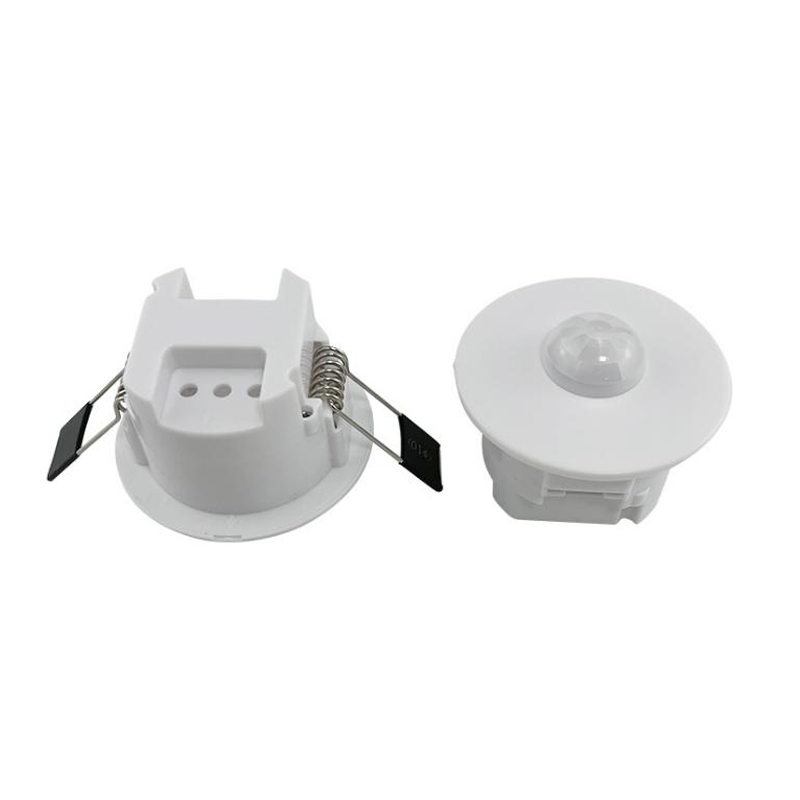

PIR motion sensor

Model

Y805

Operating voltage

120V-240V 50Hz/60Hz

Rated load

Inductive :400W,Resistive : 800W

HF system

PIR

Power consumption

≤0.5W(standby)

Detection zone Max.(D x H)

6m.Max(＜24℃)

Motion detection

0.5~3m/s

Detection angle

150 °(wall installation) 360 °(ceiling installation)

Hold time

8Sec--7min(Adjustable)

Detection sensitivity

25% / 50% / 75% / 100%

Daylight sensor

<10Lux~2000 Lux (Adjustable)

IP rating

IP20/IP65

Operation temperature

-20℃~60℃

Life time

50,000 hours
