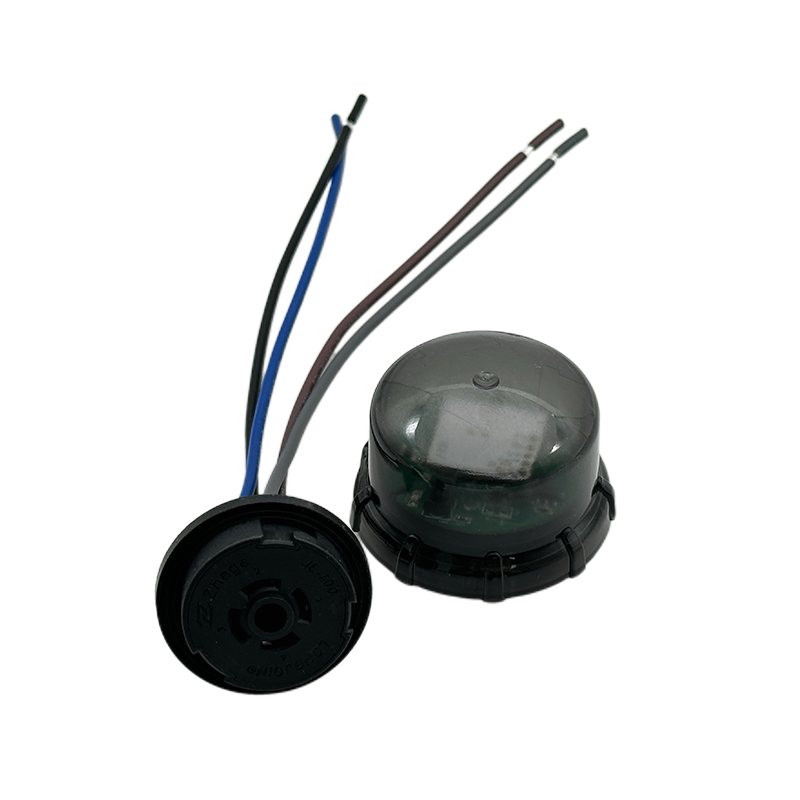

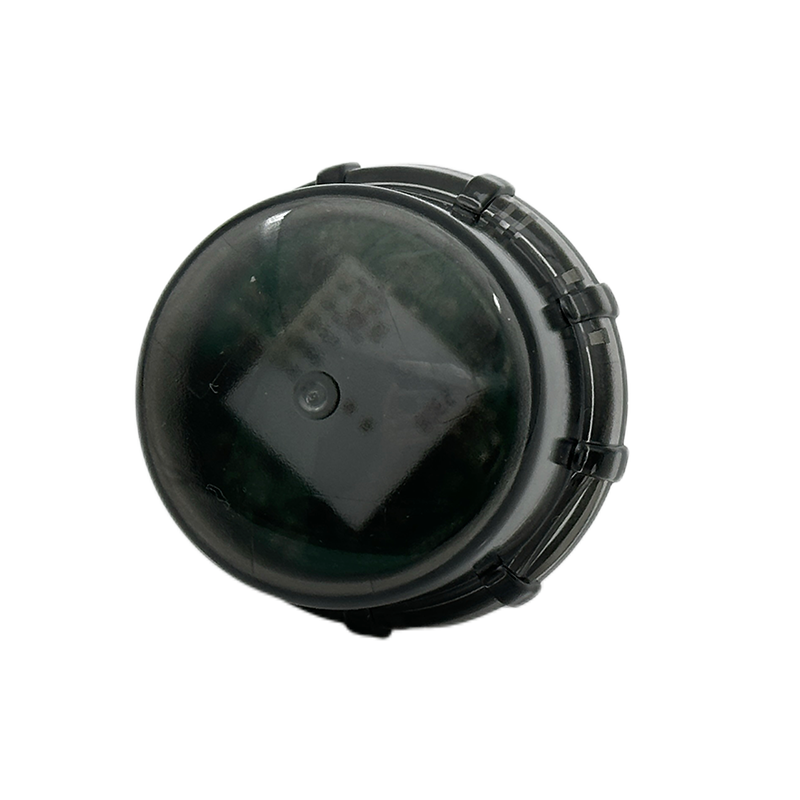

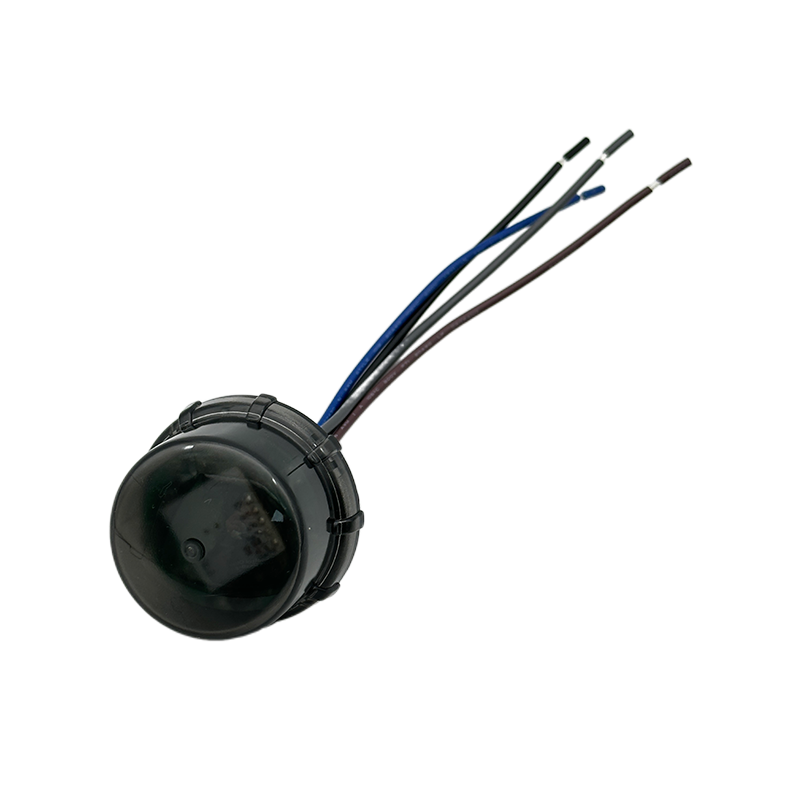

DALI-2 D4i microwave motion sensor

Features

●5.8GHz C-band microwave.
●Aux.sensor power supply:
Input voltage:12-24V  DC
Input current:max.30mA.
●DALI power supply via:DALI-2.
●Daylight sensor lux setting:1-1,000lux.
●Individual adjustment of parameters with configuration software.
●Specially designed for UFO highbay fixtures,shoeboxes, wallpacks,etc.,simple plug and play.
●D4i approved,fully compatible with DALI Part 351(Type B).

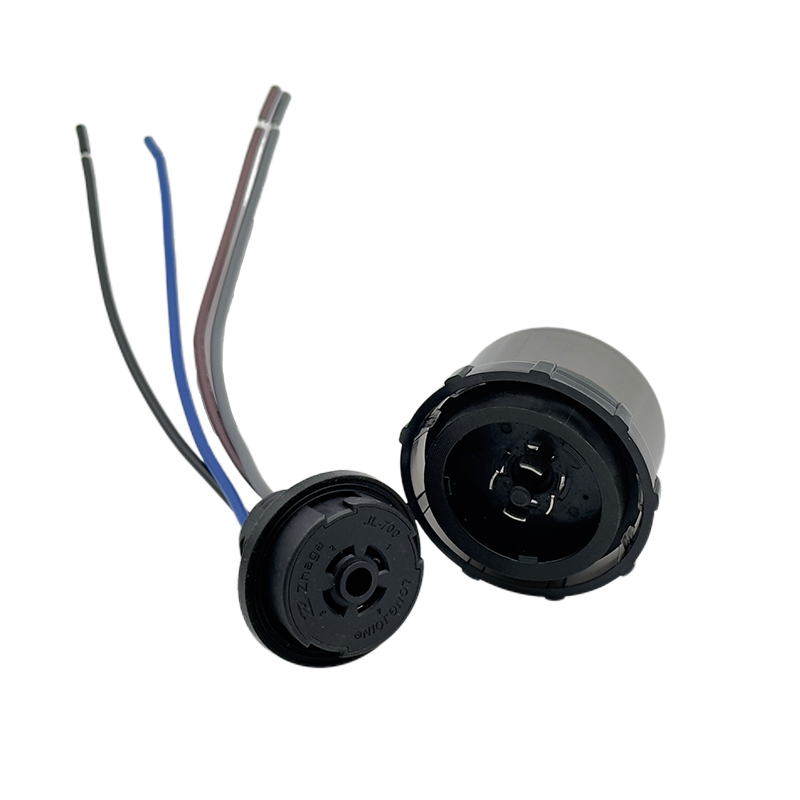

●Zhaga book18 receptacle for easy &flexible installation.
●Detection range up to max.16-18m in diameter.
●Mounting height:max.12m.
●Operation temperature:-20℃~+70℃ .
●RoHS compliant.

●IP rating:IP65.
